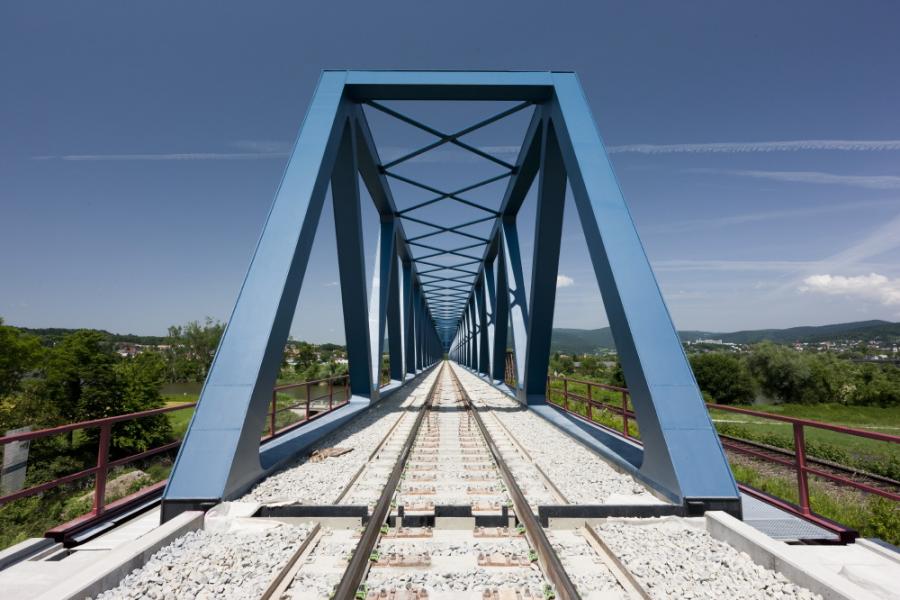

Railway bridge Deggendorf

Location: Deggendorf, Germany
Client: DB Netz AG, Niederlassung Süd
Construction period: 2008 - 2010
Construction type: truss bridge
Construction weight: 2,450 metric tons
Total length: 466.72m
Span:  84m - 95.5m - 106m - 106m - 74.5m

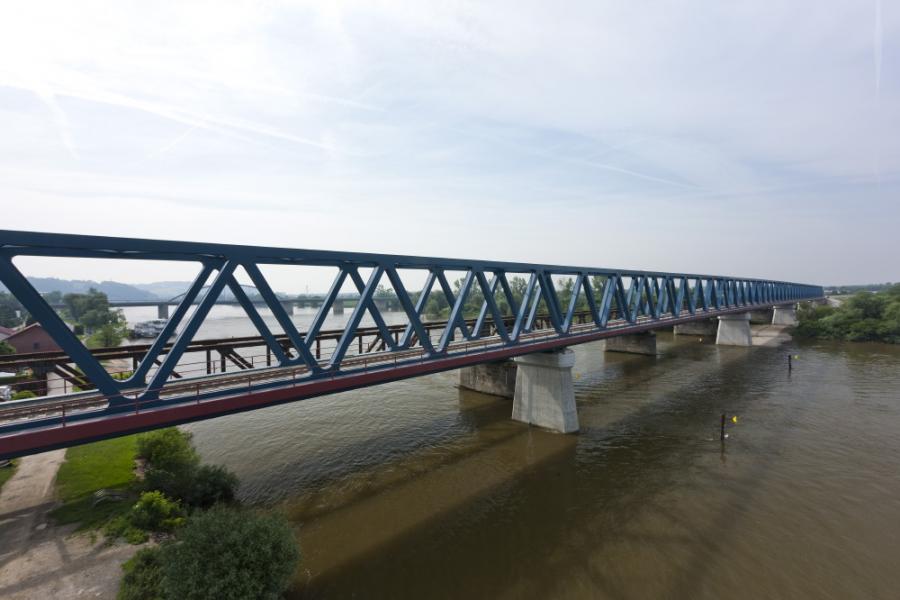

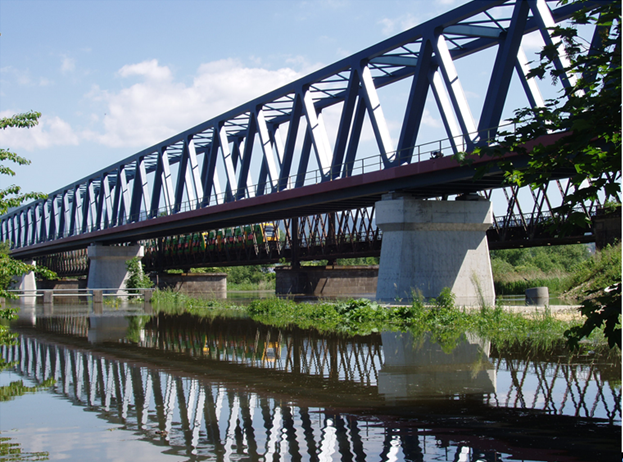

The single-track main railway line crosses the Danube River in Deggendorf along a five-span truss bridge. The superstructure was constructed on a pre-assembly site on the western riverbank and was slid over the western abutment and concrete pillars using the incremental launching method.
