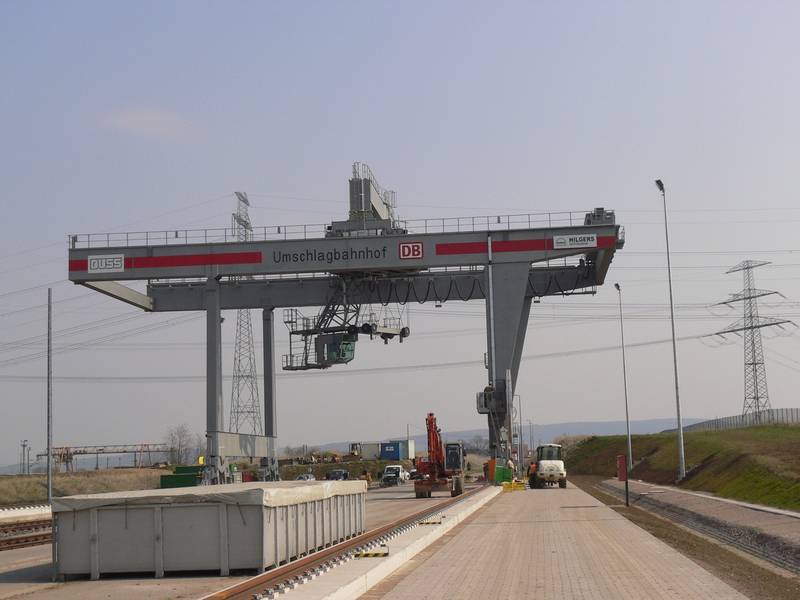

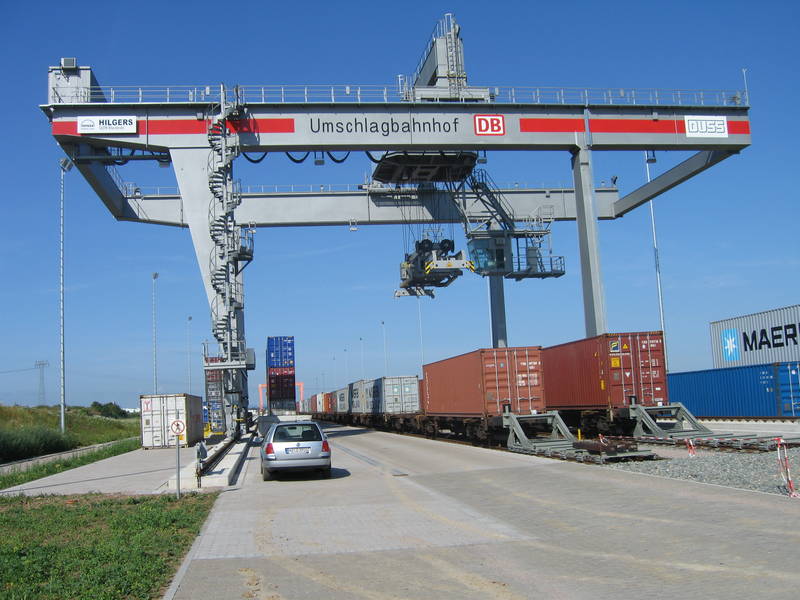

Containercrane Ubf Erfurt-Vieselbach

Specifications

Maximum load-bearing capacity of spreader    41 metric tons
Track gauge    20,000mm
Functional length of cantilever arms    7,750 mm on the hinged side
3,555 mm on the fixed side
Hoisting height    max. 12,500mm
Crane travel speed    max. 80m/min
Cross travel speed    max. 60m/min
Rotation speed    1.5 - 2.0r/min
Lifting speed at full lifting capacity    10m/min
Lifting speed in field weakening operation mode    20m/min
